$2,265.00 inc GST

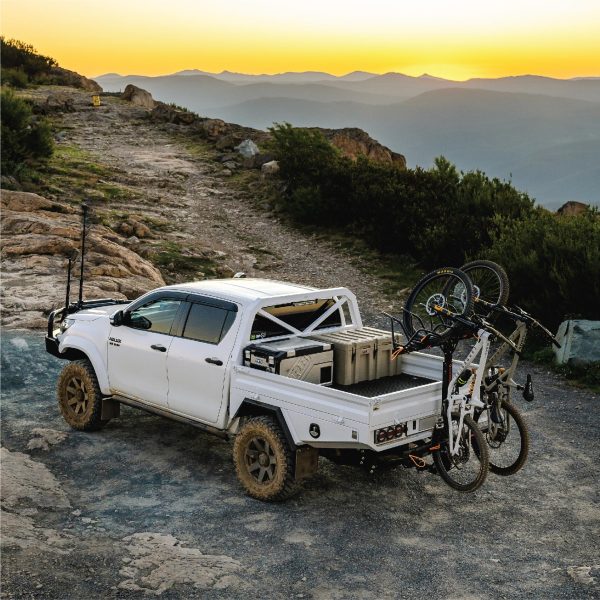

The Shingleback PRO 4 Bike Vertical Bike Rack is a heavy-duty, Australian-made bike rack designed to carry multiple e-bikes and a wide range of other bikes. It boasts a 33% increased carrying capacity compared to the standard model. You still get the awesome base features of the Shingleback rack, with additional features exclusive to the Shingleback PRO.

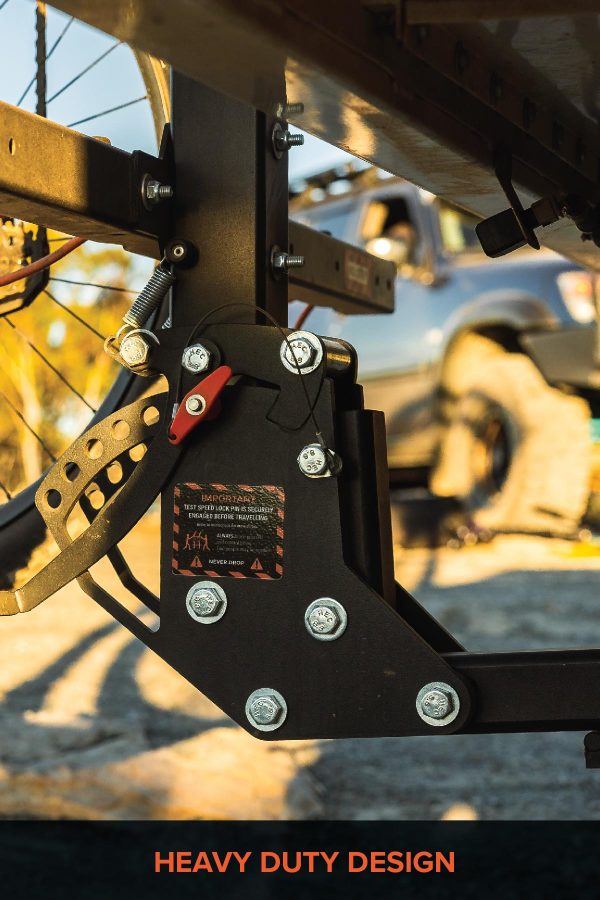

Built to Last.
Adaptable Fit.
Secure Transport.

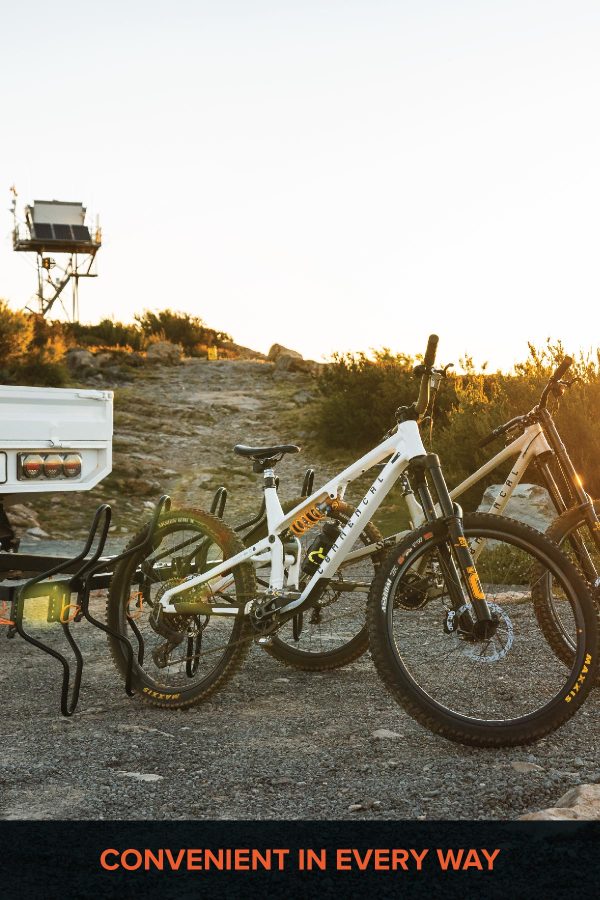

Convenient Features.
All new tow bar tube.

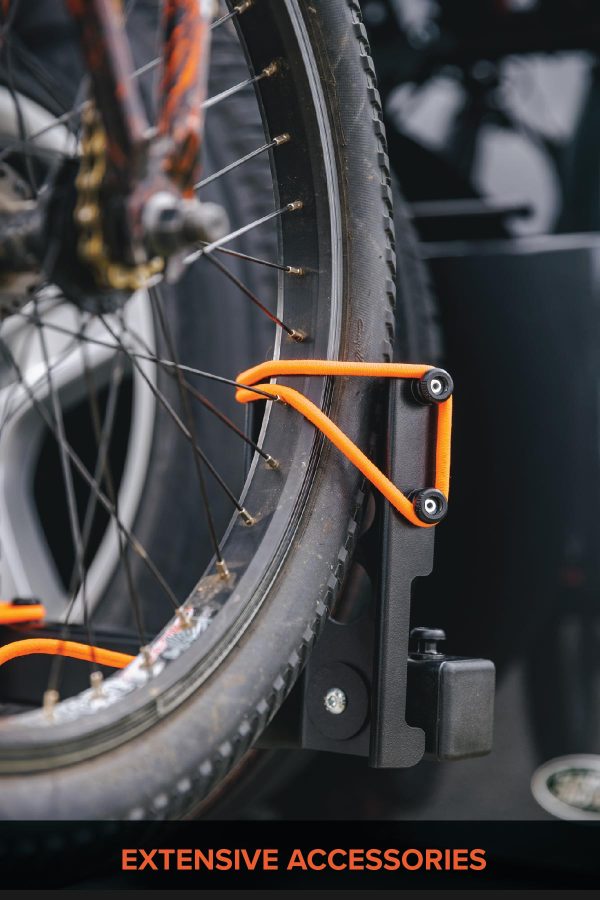

Extensive Accessories

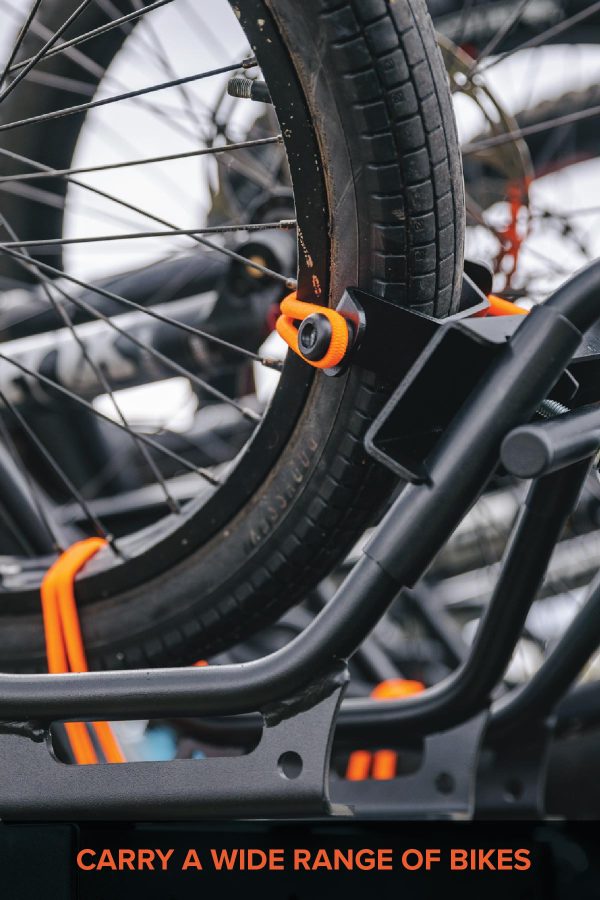

Carry a wider range of bikes with the Shingleback PRO, from 20”– 29” wheels
Effortless Roll On/Roll Off loading
Long-lasting Quality
NOTE:The Shingleback PRO can be used with the Swing Arm and other Shingleback tow bar accessories such as the offset tow bar tubes. However because the PRO has a custom reinforced tow bar tube for increased strength and stability, replacing it with other accessories will require additional PRO Adapter Spacers and the maximum total rack carrying capacity will reduce to 105kg.
Weight
4 bike rack: 33kg
5 bike rack: 37kg
6 bike rack: 41kg
Width (unloaded)
4 bike: 1100mm
5 bike: 1380mm
6 bike: 1680mm
Height (from tow bar)
All sizes: 1480mm – 1760mm (adjustable height)
Maximum load (per cradle)
All sizes: 35kg
Maximum carrying capacity (whole rack)
4-6 bike: 140kg
Vehicle fitting
Like all Shingleback vertical bike racks, these are attached to your vehicle using a 50mm square towbar hitch.
For full specifications and fitting variations, please see our Rack Specifications page >

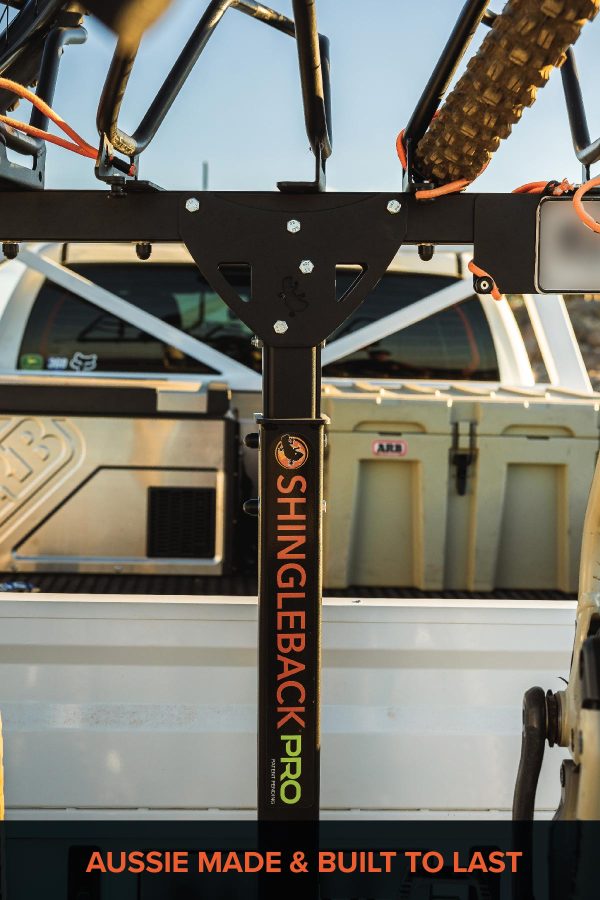

Manufactured in Australia using Australian made Duragal Steel for strength and corrosion resistance, aluminium to cut weight where we can, and all finished in a tough textured black powdercoat, you can be assured they are built to last..
The Shingleback bungee is Australian Made, marine grade and UV resistant bungee cord that is doubled over for extra strength.
Free shipping applies to all orders within Australia of racks, accessories and spare parts listed on our website.
We aim to dispatch your order within 5 to 7 business days of the order and payment being received. This can vary during peak seasons, however we will always strive to dispatch your order as quickly as possible.
All orders within Australia will be delivered by Direct Freight (excluding small items which are sent via Australia Post). Once your shipment is collected by Direct Freight, Shingleback Off Road can not control delivery times, however we will provide you with a tracking number for your shipment so you can monitor delivery progress and stay informed. Once you receive the tracking number we encourage you to log on to the Direct Freight website and track your order. We will support you in the unlikely occurrence of your parcel not being delivered.
PATENTED AU 2021345499 B2. All our products are custom-made and exclusive to Shingleback Off Road.

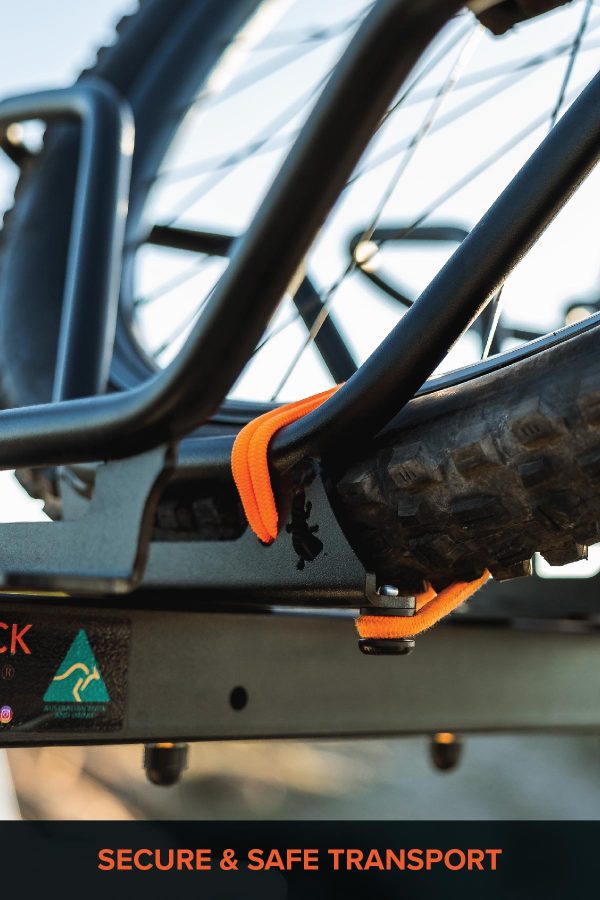

Unique Patented cradle design minimises movement, contacts tread for sidewall protection, and offers precise wheel support. Highly adjustable for wider handlebars, staggered positioning ensures ample clearance between bikes.
Crafted from premium Aussie-Made Duragal Steel for superior strength and internal rust resistance. Sandblasted & finished with black powder coating for durability.
Our unique cradle design and accessories caters for a wide range of bikes including 24" to 29" MTB up to 4” wide tyres. Optional Accessories are available for 20” Kids Bike / BMX wheels and Road/Gravel Bikes.

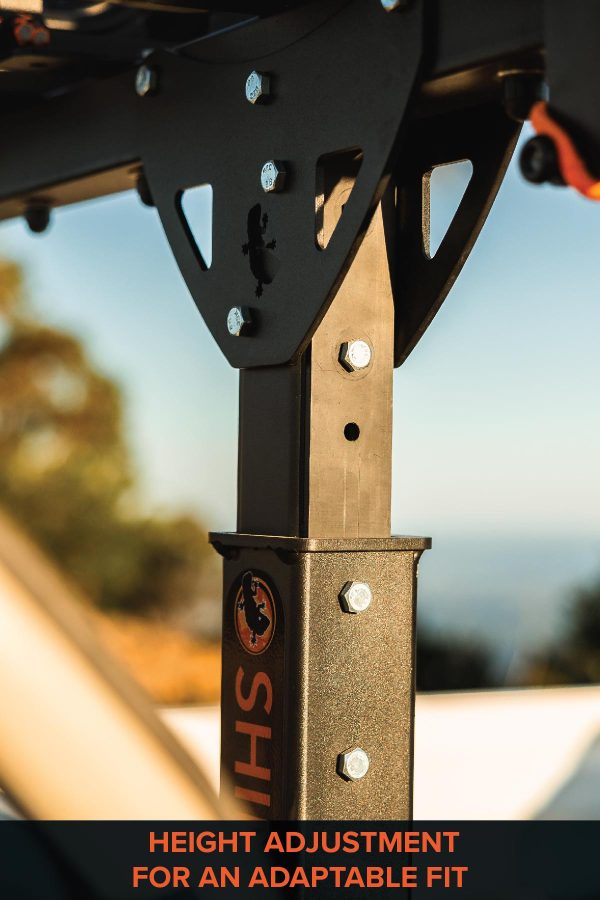

Featuring a massive 280mm of vertical height adjustment to significantly increase the vehicles departure angle to prevent bike wheel contact when going up steep driveways.
We’ve used lightweight materials on the bottom bar as it's engineered to protect your bike from any rear impacts during transport, with easily replaceable parts.

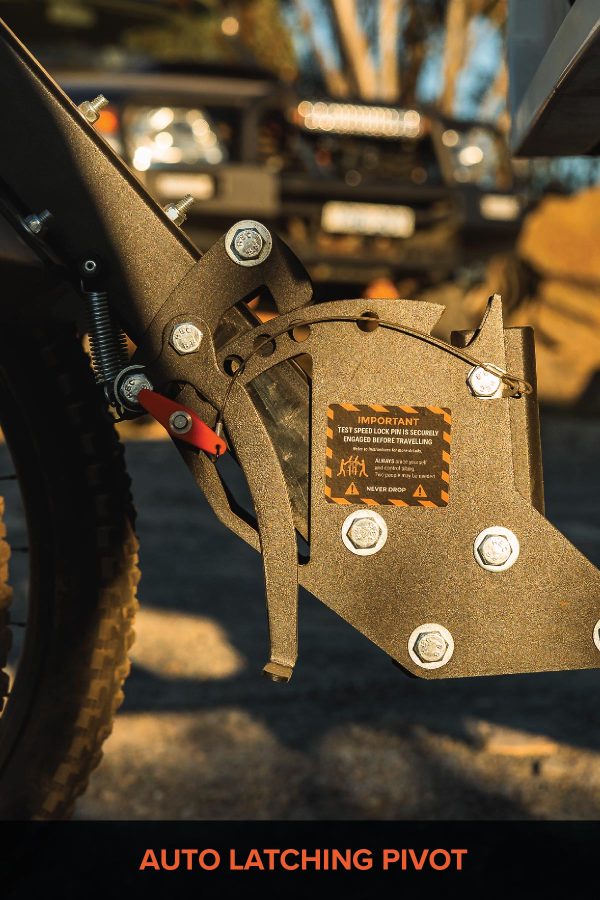

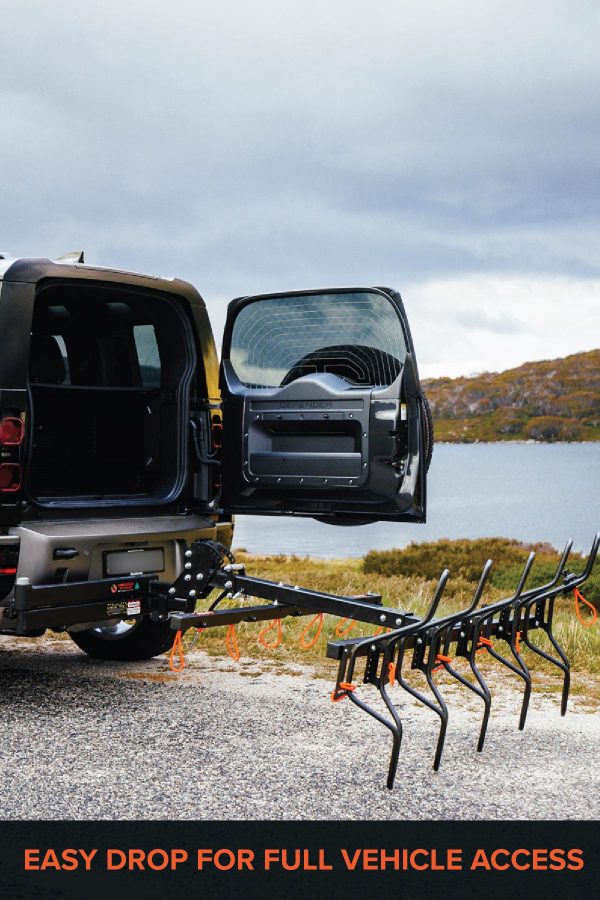

An exclusive Shingleback design with an auto-latching pivot for added safety when transporting. Easily tilt the rack to ground level for rear vehicle access. Plus, enjoy a convenient bike stand feature when fully tilted.
The Shingleback PRO boasts a 33% higher load rating, supporting up to 140kg—35kg more than the Shingleback Vertical Bike Rack. It includes a unique welded tow bar tube that features two traveling positions and is significantly stiffer to easily handle the extra carrying capacity.

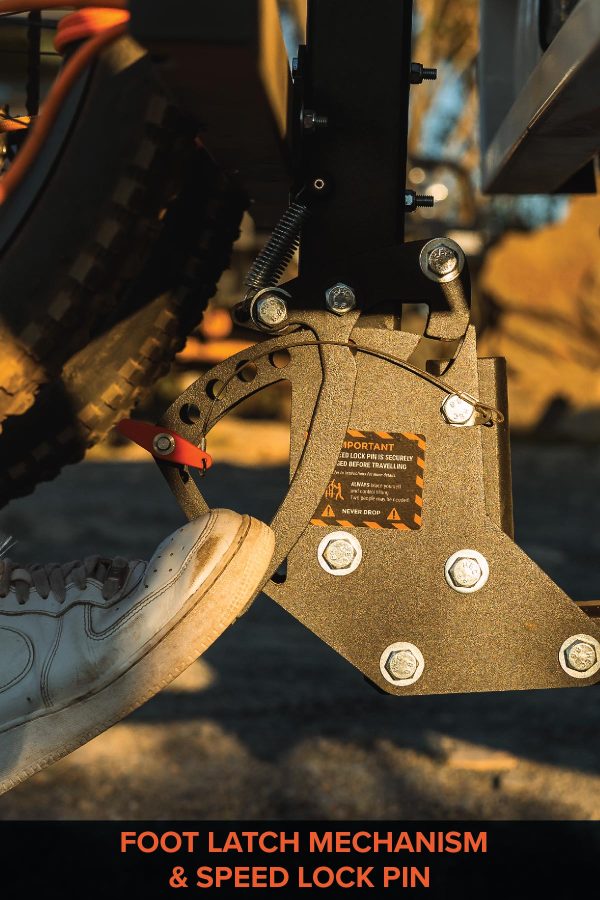

Our unique and exclusive Shingleback Speed Lock Pin, for seamless lock-in during transport. The unique Foot latch mechanism enables easy tilting for roll-on/roll-off loading.

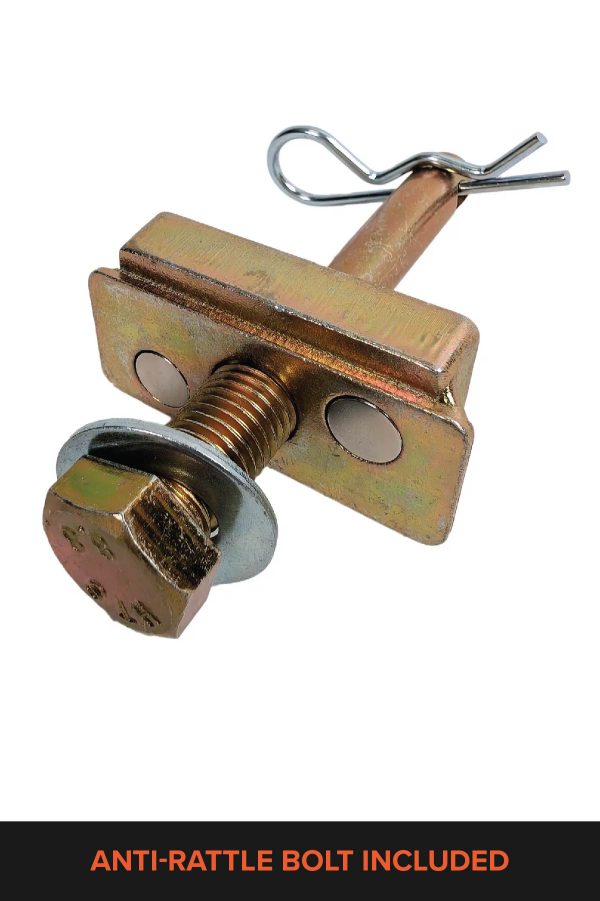

Comes standard with both the innovative magnetic Anti-rattle Bolt and trusty Anti-Rattle Clamp for a rock solid vice like fit into your vehicles 50mm square hitch.
Check the measurements and diagrams to assess fitting of our racks to your vehicle in both travel (upright) and loading (tilted) positions.
Shingleback Off Road is a family-owned business. All our products are designed and made in North East Victoria.
We’re so confident in the workmanship of our Shingleback racks that we’re prepared to guarantee them for 10 years.
The only vertical bike rack company in Australia to have third party engineering certification. Shingleback racks are tested to ensure product longevity, QA compliance and safety.
